Exterior design

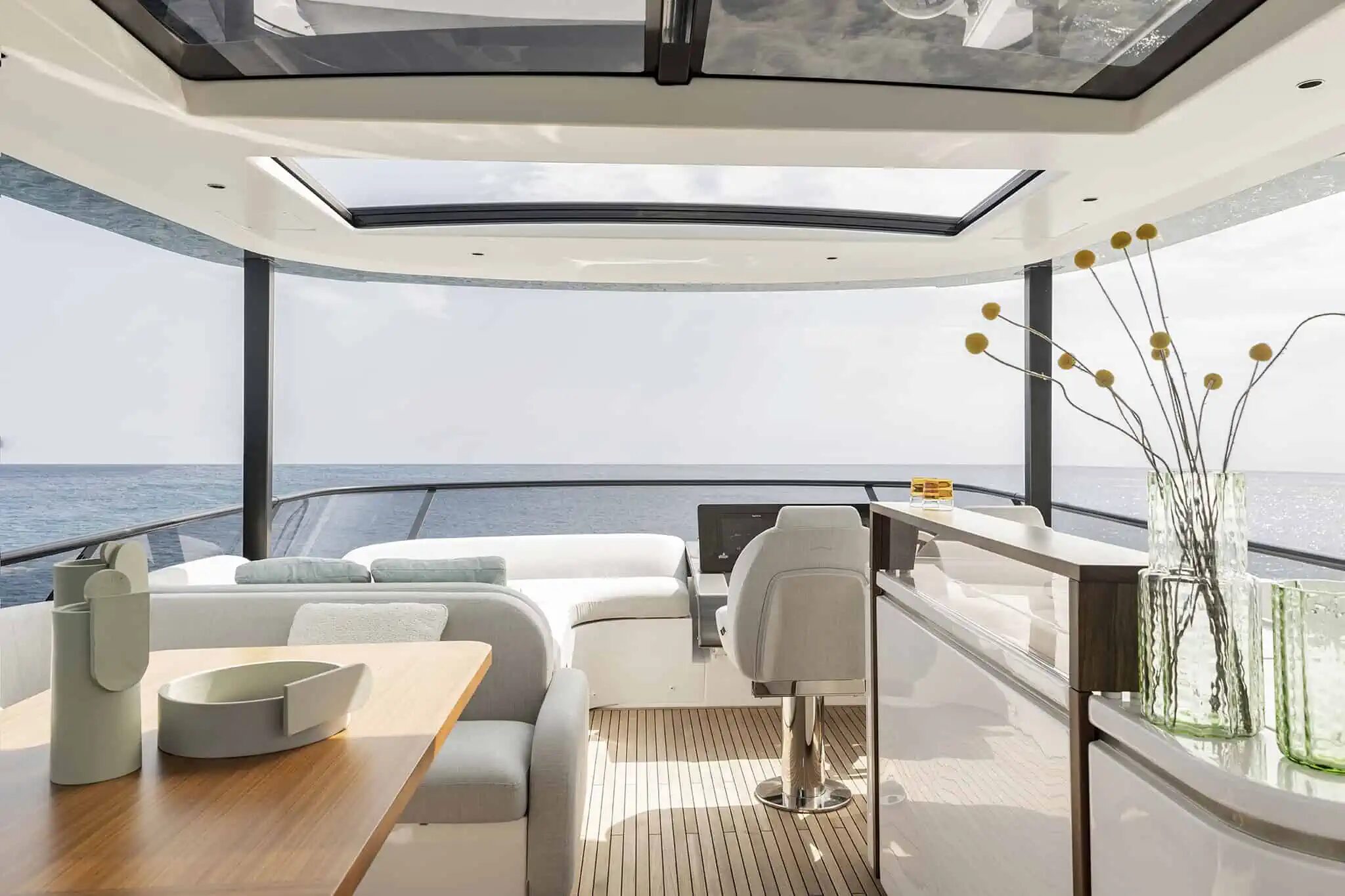

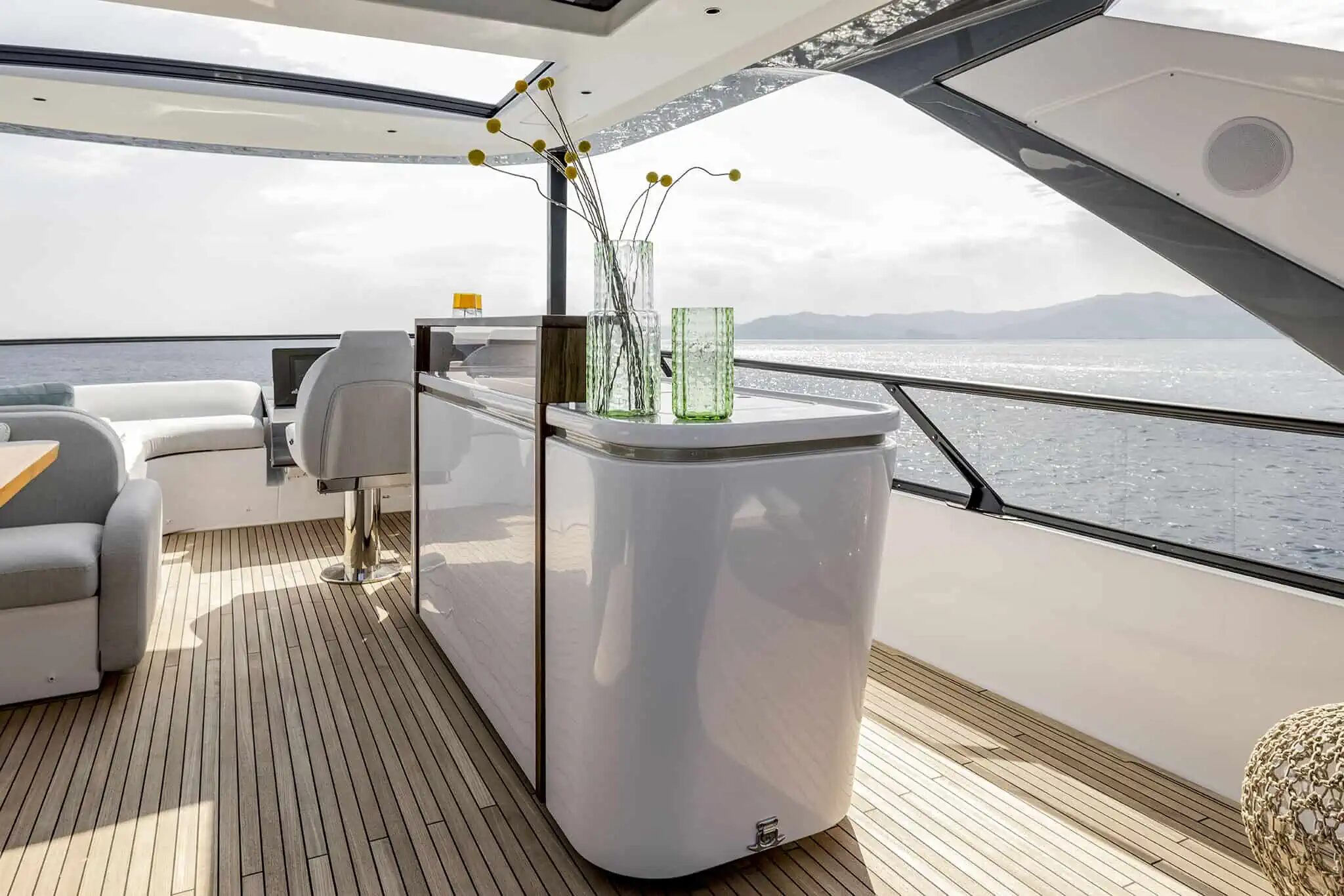

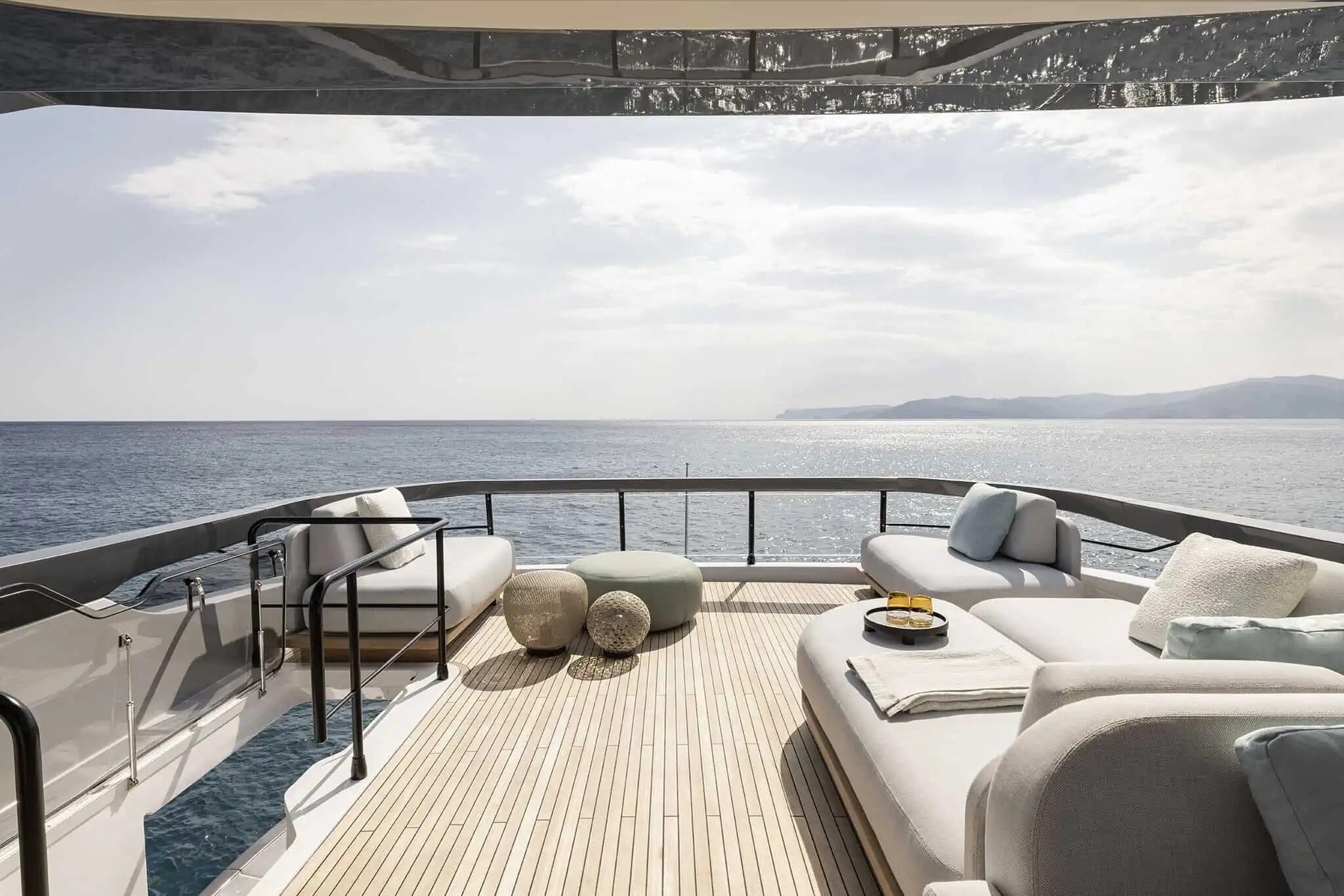

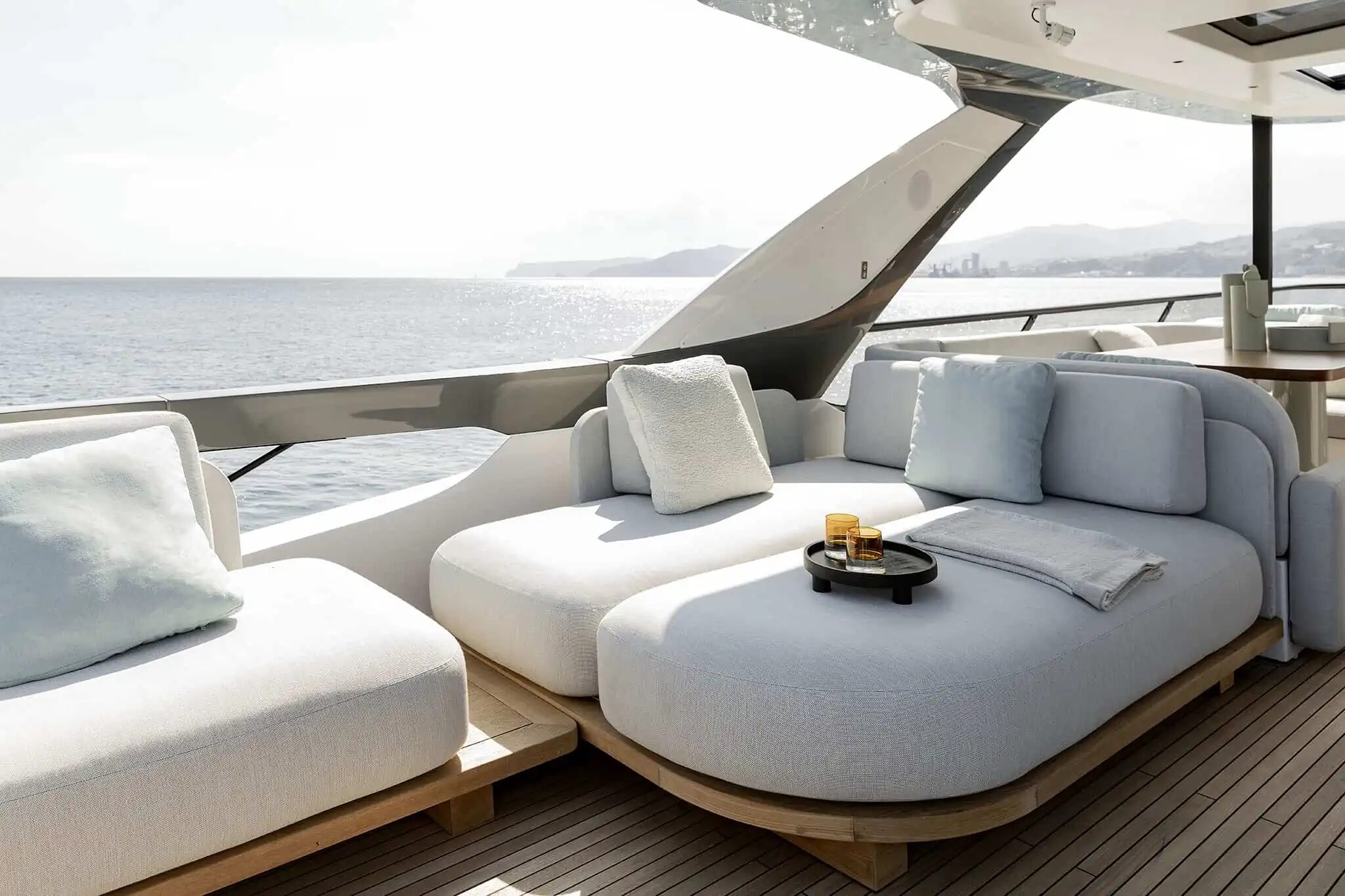

The flybridge is designed for outdoor living, with sun loungers, a large American bar and a versatile aft area.
Carbon-fibre flybridge balancing comfort and sporty performance

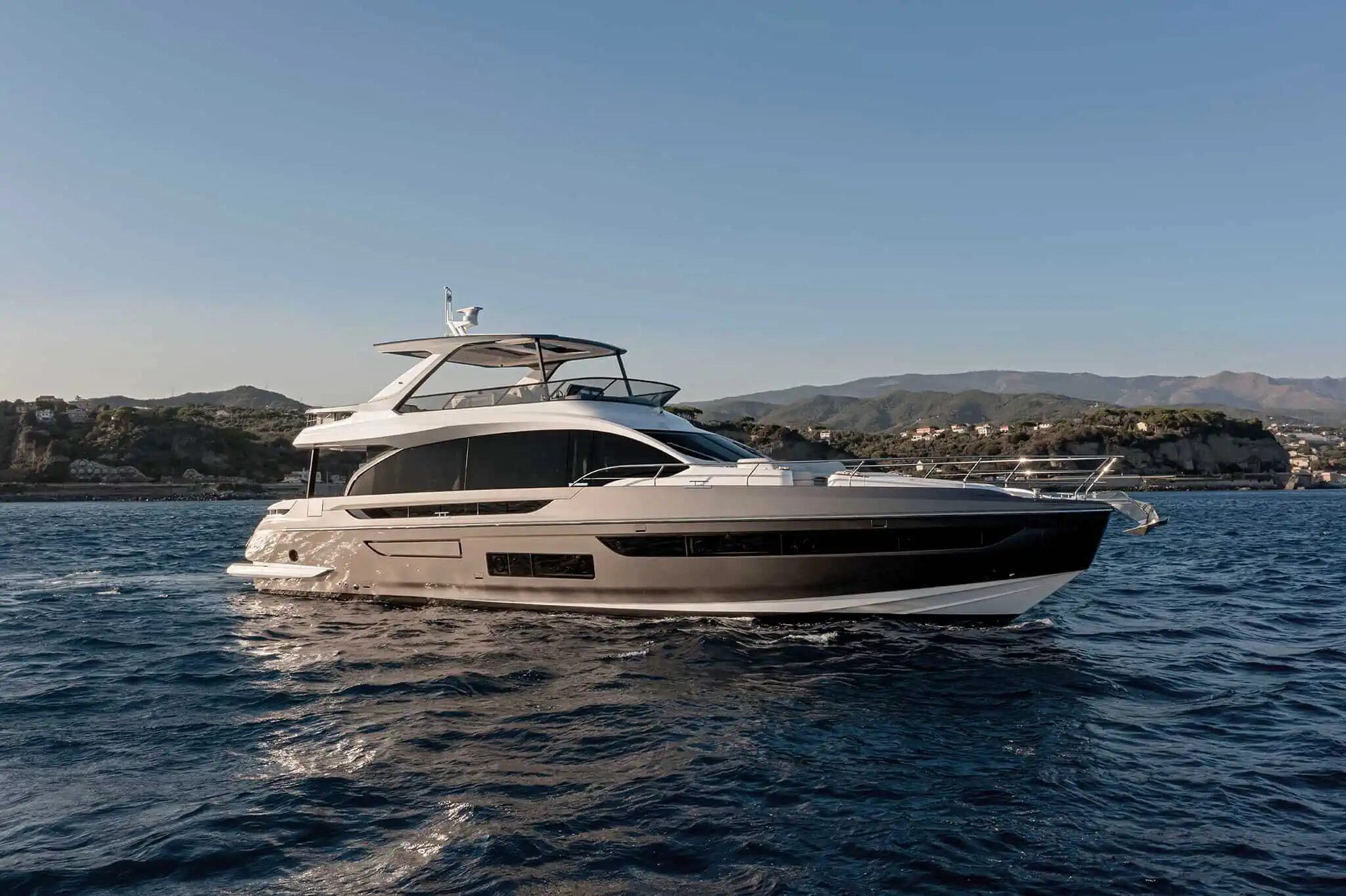

The Fly 72 balances onboard comfort with a sharp hull design. Carefully studied proportions carry the same design details through every space on board.
A carefully developed hull, carbon-fibre structures and strong twin MAN engines give it a sporty feel at the helm, even with so much room for guests. Its styling comes from Alberto Mancini, and Fabio Fantolino created the interiors.
Highlights
Signature features
Interior design

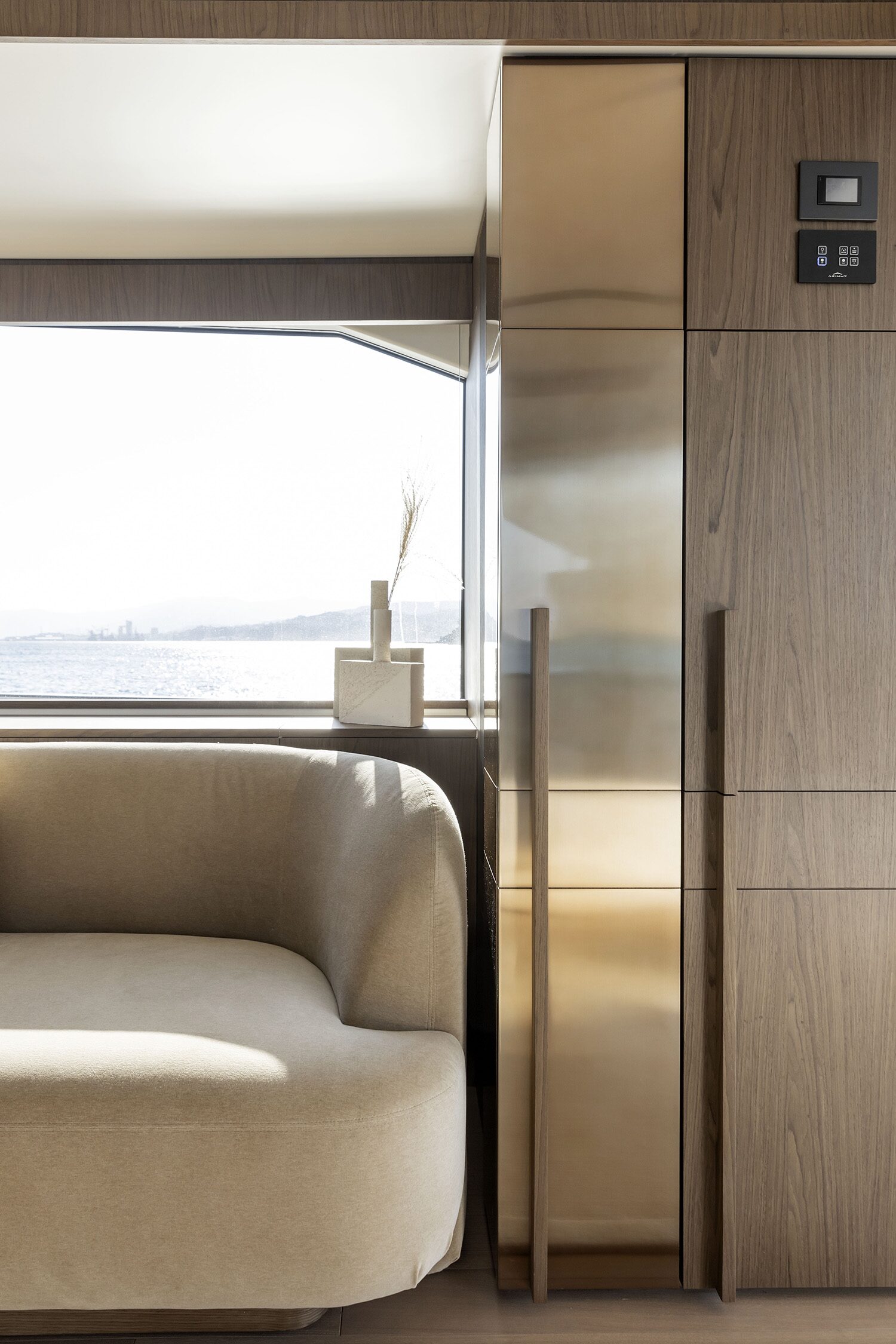

The interiors mix nautical tradition and contemporary design, balancing fine woods, bronze and soft shapes.
Specifications
Technical Data
Length74.44 ft
Beam18.44 ft
Draft5.97 ft
Cabins4 + 1 crew
Berths8 + 2 crew
Heads4 + 1 crew
Engines2 × MAN CR V12
Power2,800 hp
Max Speed32 kn
Cruising Speed26 kn
Fuel Capacity5,200 L
Fresh Water1,100 L
CE CategoryA
Layout

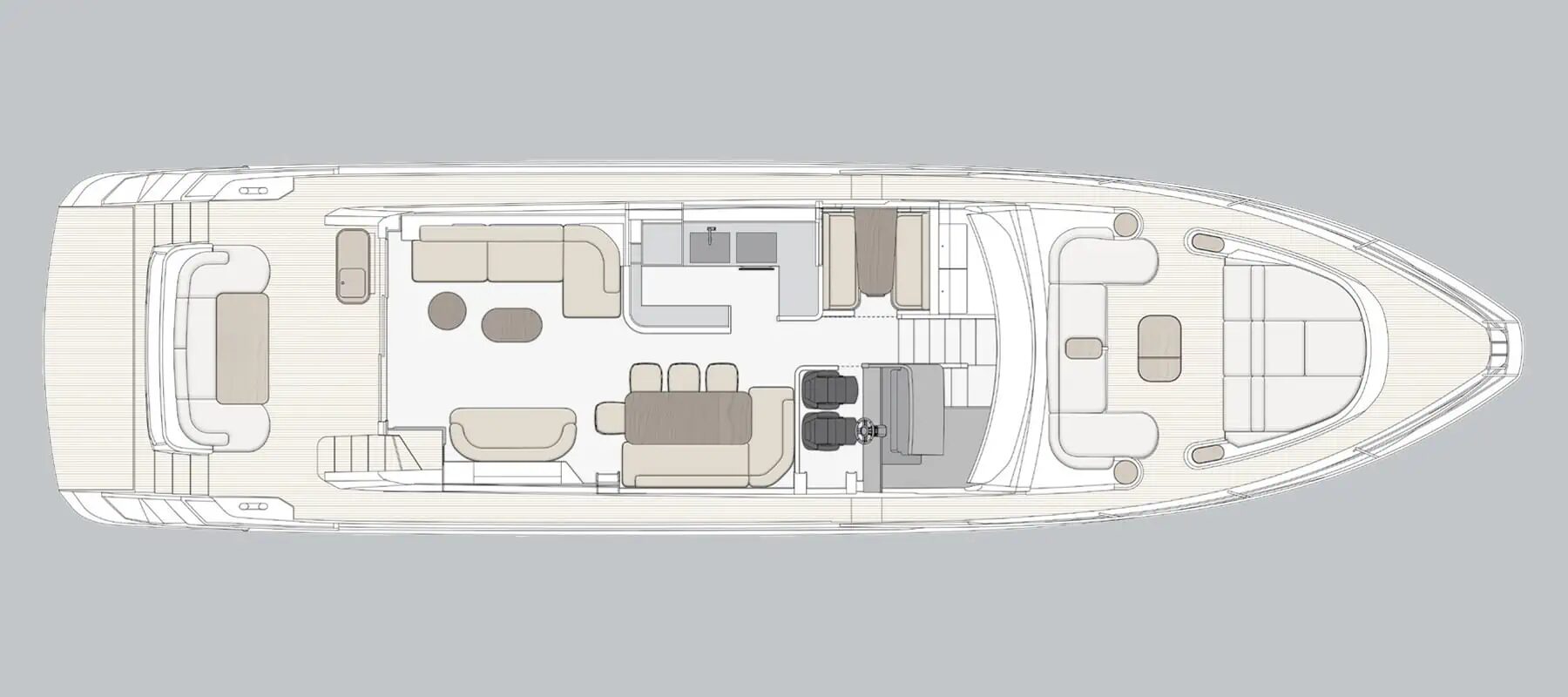

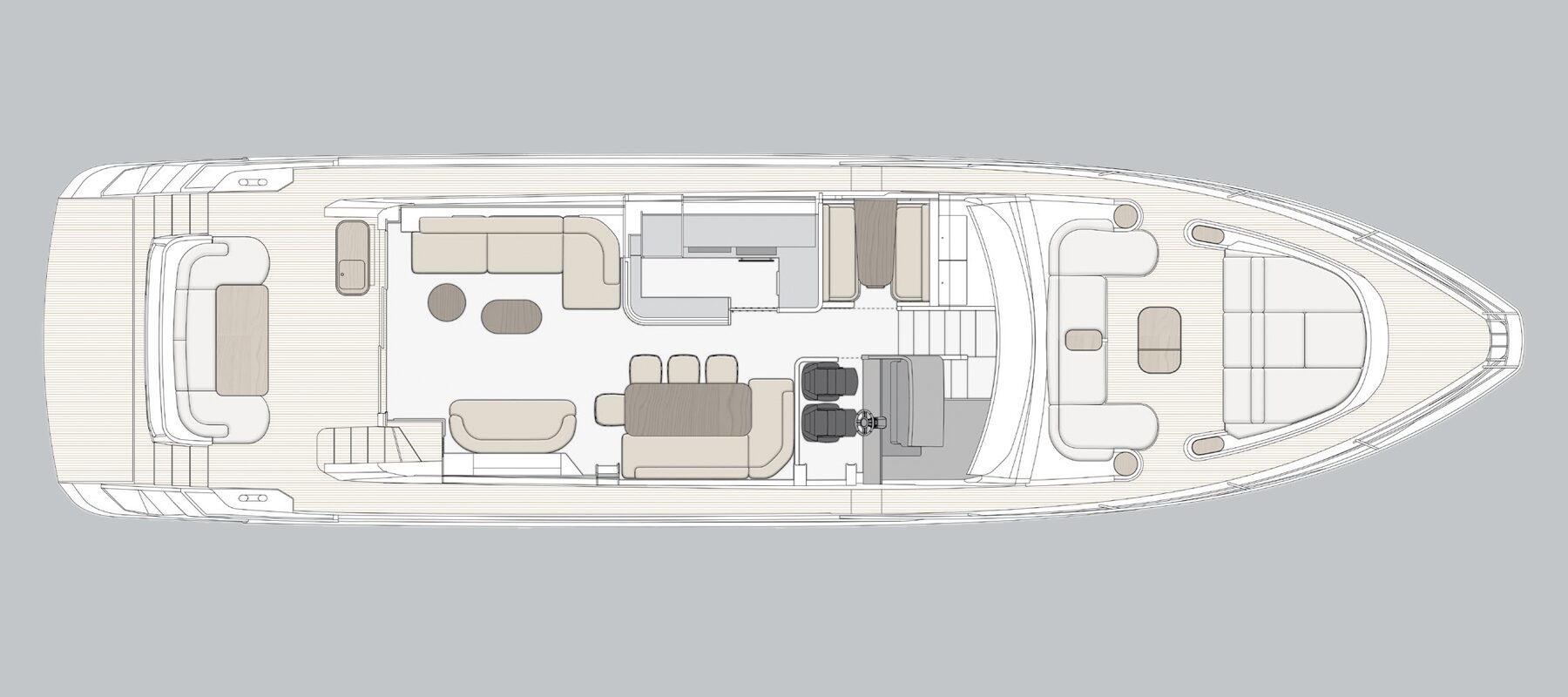

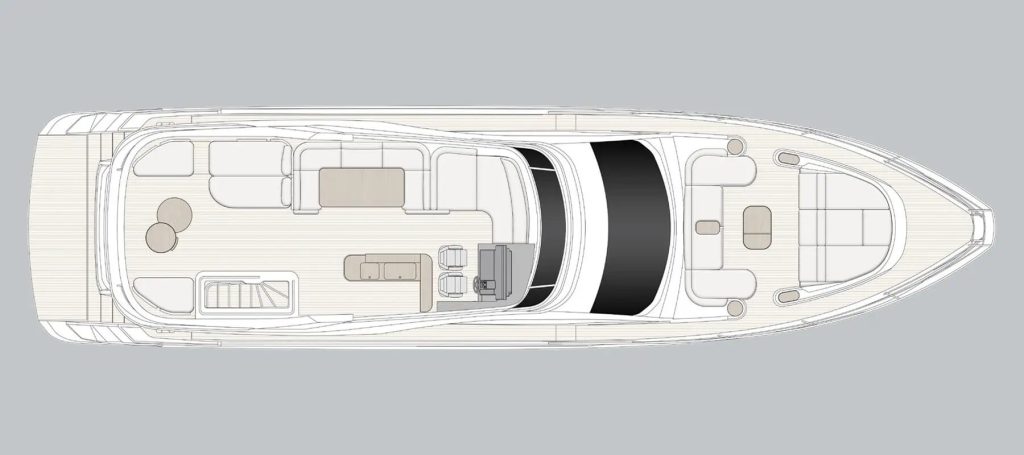

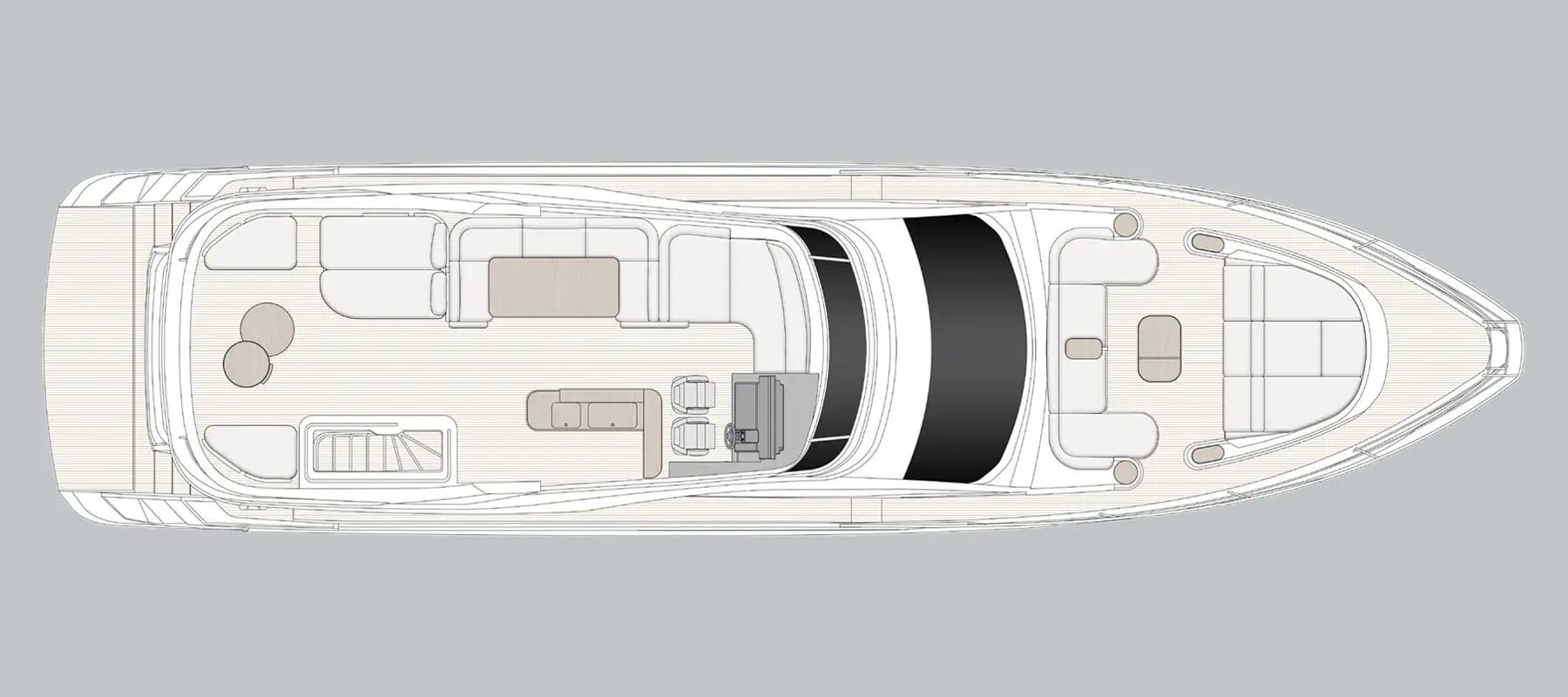

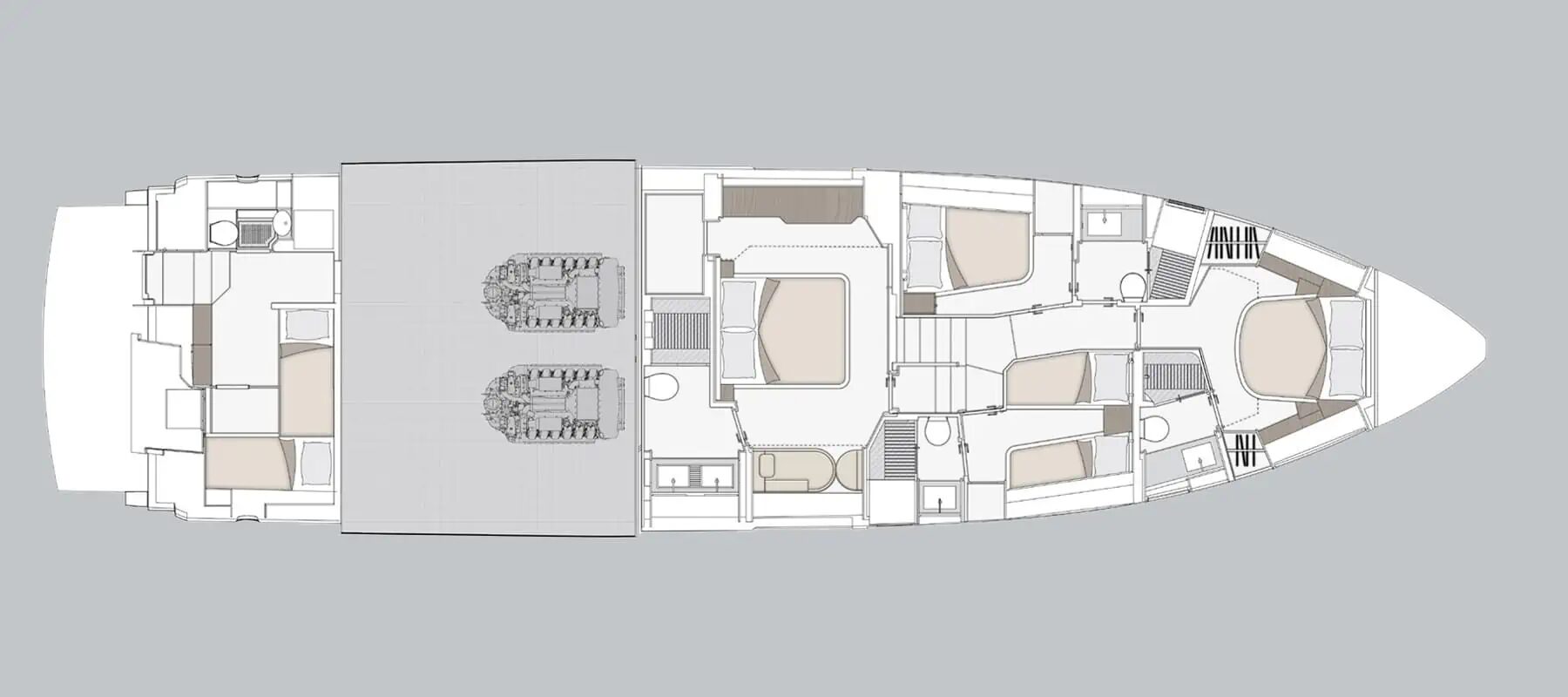

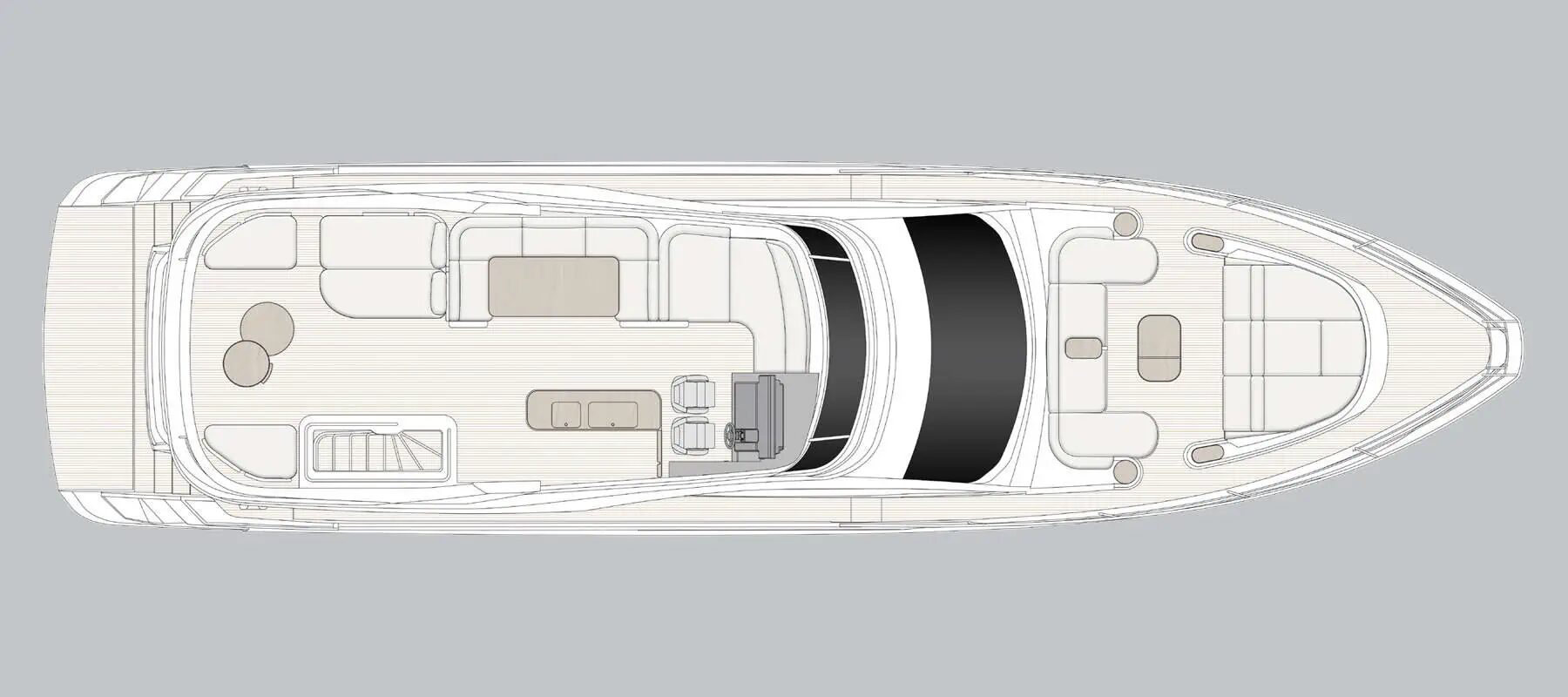

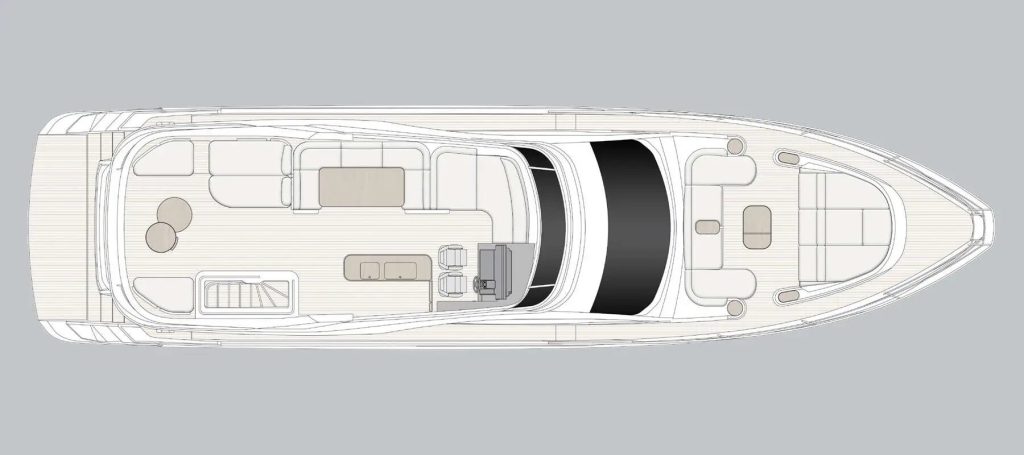

Deck plans
Gallery
A closer look
TechnologyEngineering & equipment
Carbon-Tech Generation
Laminating the upper parts of the Fly 72 in carbon fibre keeps its weight low down. The components concerned are as much as 30% lighter, roll drops by up to 15%, and the volume gained inside comes without any loss of stability or handling.
Active Trim Control
The Fly 72 uses Humphree interceptors that lift the hull onto the plane earlier and then hold it at the best trim. By reducing drag at every speed and load they add speed and save fuel, and being fully electric (12–24 V DC) they need very little power to move their blades.
Integrated Control & Monitoring System
On the Fly 72 the integrated system is built on Raymarine electronics. From either helm, or remotely with the mobile app, it controls and monitors the engines and their alarms, the pumps, the engine-room ventilation, the level in each tank, audio and air conditioning.
Automatic Fuel Transfer E-Pump
The system moves diesel from tank to tank automatically, keeping the heel angle close to zero when the load distribution changes and during refuelling.
High Technical Standard Declaration
The Fly 72 comes with Azimut’s High Technical Standard Declaration, which confirms that its design, engineering, materials and test procedures reach the highest level for production leisure craft.
